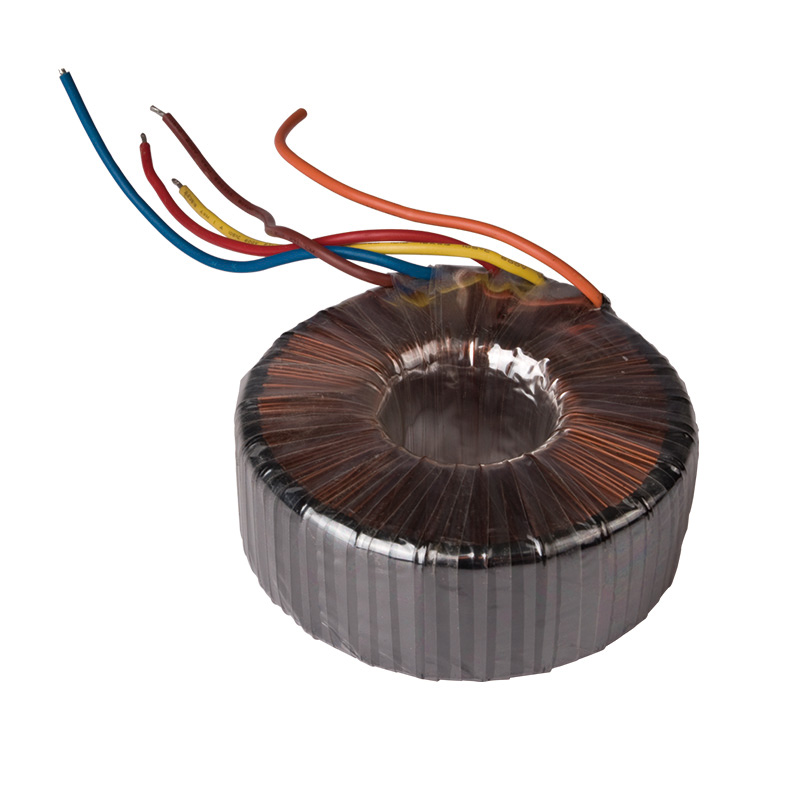

• Torodial transformer benefits :low profile. lightweight. cool running / high efficiency.due to the core shape - low stray magnetic fluxleakage (low EMI).

• Dual 117/234 VAC primary, 50/60 Hz.operation.

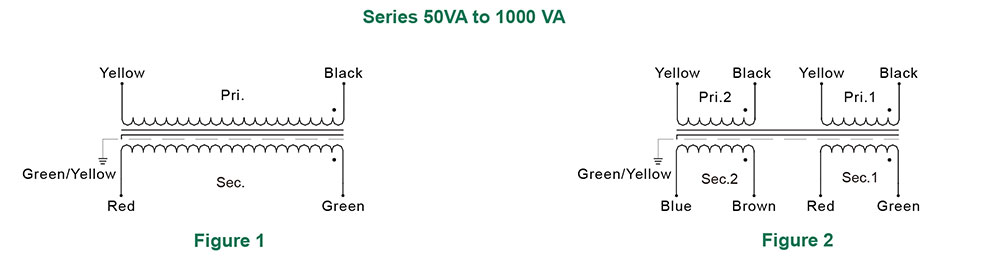

• Note: Units are designed to have all windingsengaged (either series or parallel connected) orconnected as an autotransformer. Connectionsheet included with transformer. See ProductResources for Download.

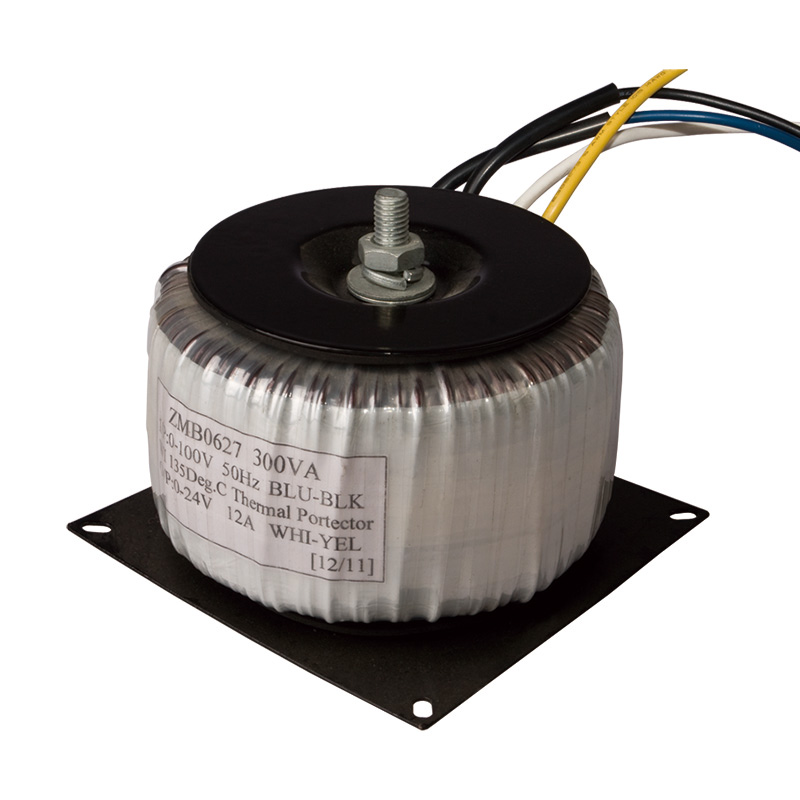

• Supplied with two neoprene rubber insulatingpads, one metal centering washer and allmounting hardware (except the 1,500 VA size).

• 1,500 VA size - is supplied with a potted centerfor extra strength.

• Minimum 8" long flexible leads.

• Manufactured using Class B (130 degree C)materials.

• Hi-Pot test of 4,000VAC RMS between primary& secondary.

• UL recognized to UL506 (XPTQ2.Guide)

• CSA certified to C22.2 #66
