• Electrostatic shield between primary and secondary windings provides cleaner output voltage and helps to reduce spikes and transients.

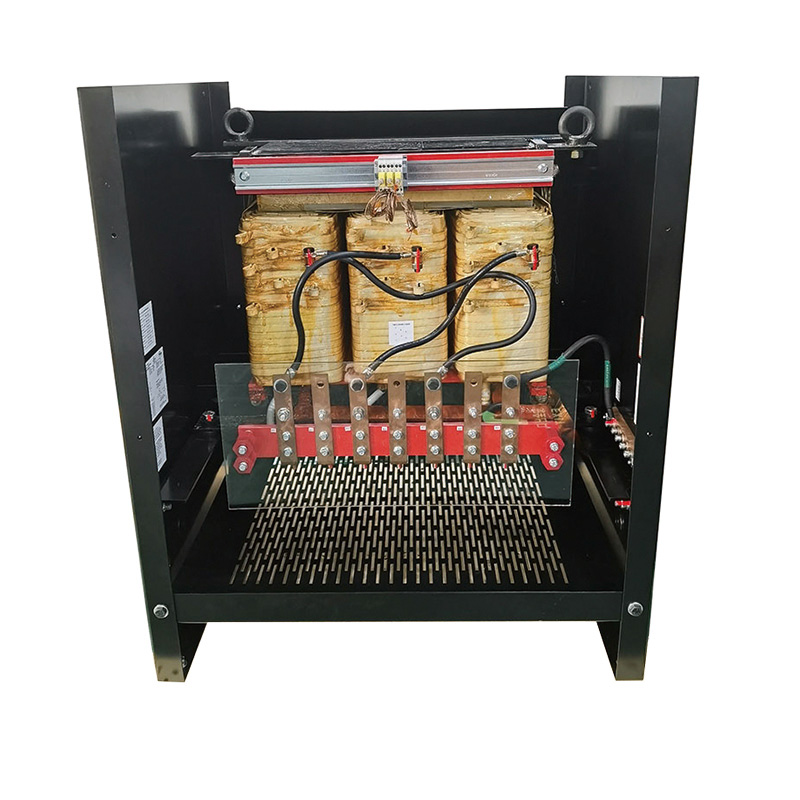

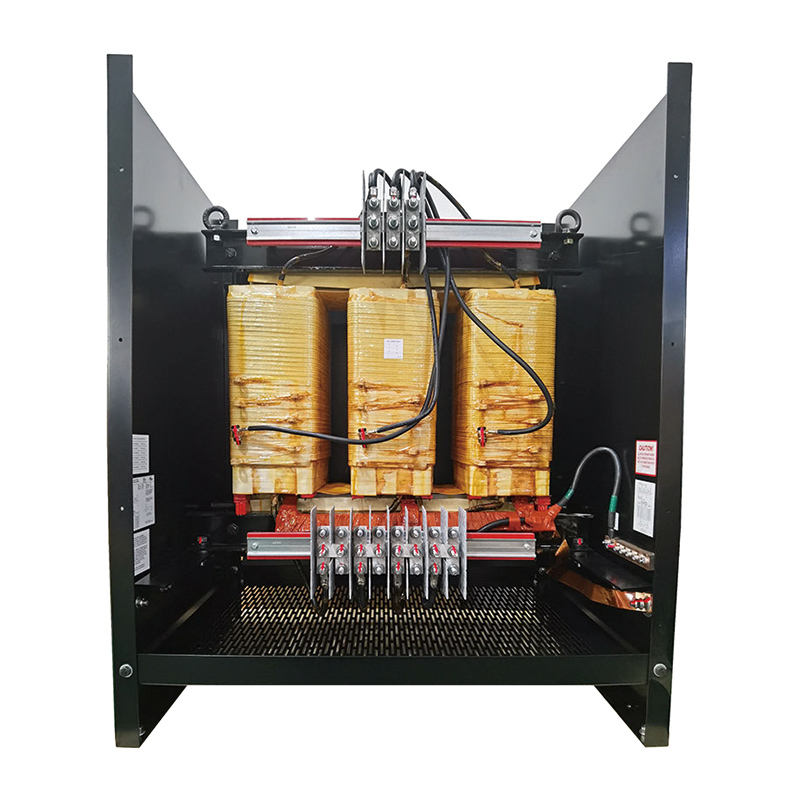

• Copper or aluminum  windings connect to bus bar styleterminations equipped with NEMA standard holesfor compression style or ring terminals

• UL220°C insulation system, full load 115°C or 150°C temperature rise, the ambient temperature ≤40 °C

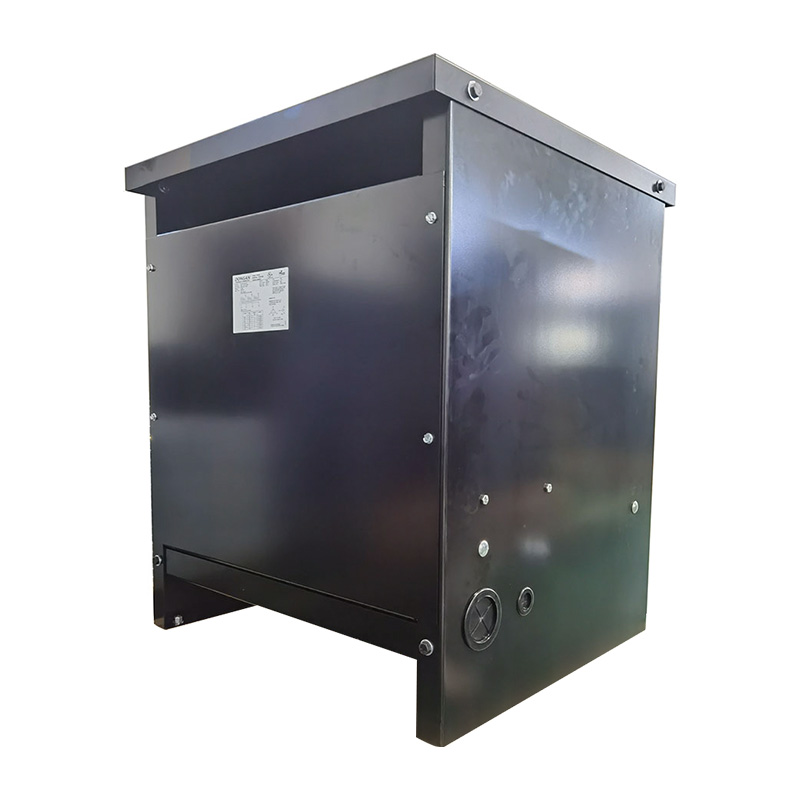

• NEMA Type 3R, ventilated, cabinet style, floor mount enclosure suitable for indoor or outdoor use. No extra rainshields required for outdoor use.

• Vibration dampening pads provide quiet operation.

• Ground studs provided for bonding compatibility with both metallic and nonmetallic conduit.

• Connection method:1.Terminal block 2.Copper terminal.

• Core and coil and nonstandard designs are available by consulting the factory or your Xinwango representative.
