• Description :

These transformers operate in the 20 Hz to 20,000 Hz range, making them suitable for a broad application spectrum in the audio industry. These devices are used in line matching, telephone coupling, pulse trigger, driver, interstage,output, isolation and input applications.

• Operating Temperature Range: -20℃ to 40℃

• Electrical Specifications at 25℃

1 .Primary Impedance: 10000ΩCT

2 .Secondary lmpedance: 10000ΩCT

3 .Output: 100mW

4 .Primary DC Unbalance: 4 mA

5 .Frequency Response: +2dB from 20 to 20,000 Hz

6 .mpedance Matching :10% over full frequency range

7 .Longitudinal Balance:> 45dB

8 .Insertion Loss @1K Hz:<1.5dB

9 .Return Loss:>26dB

10 .Total Harmonic Distortion <0.5% between 275Hz and3.5KHz

11 .DCR : Primary (1-3)820Q Nominal Secondary(4-6)1070Ω Nominal

12 .Turns Ratio: 1:1

13 . Dielectric Strength: 1500V Pri to Sec to Core

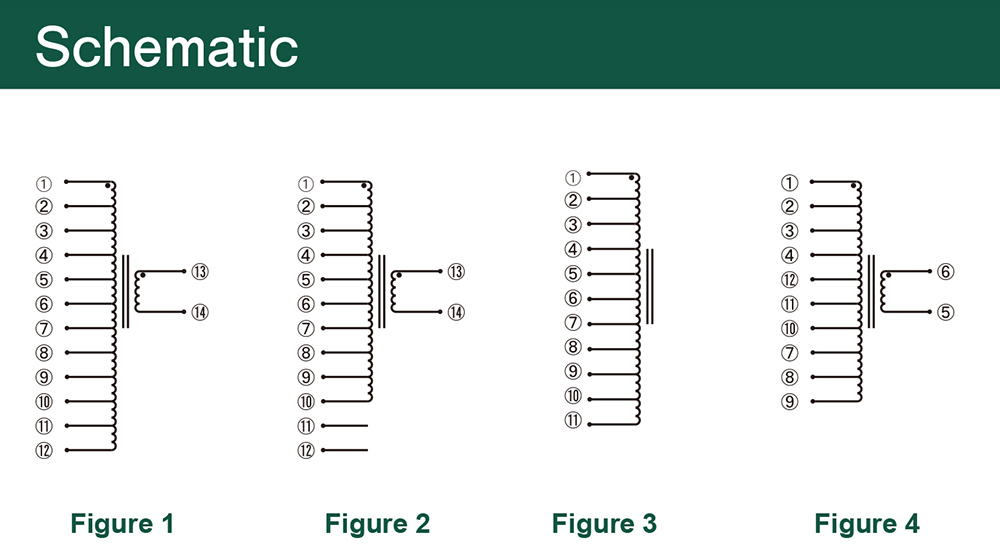

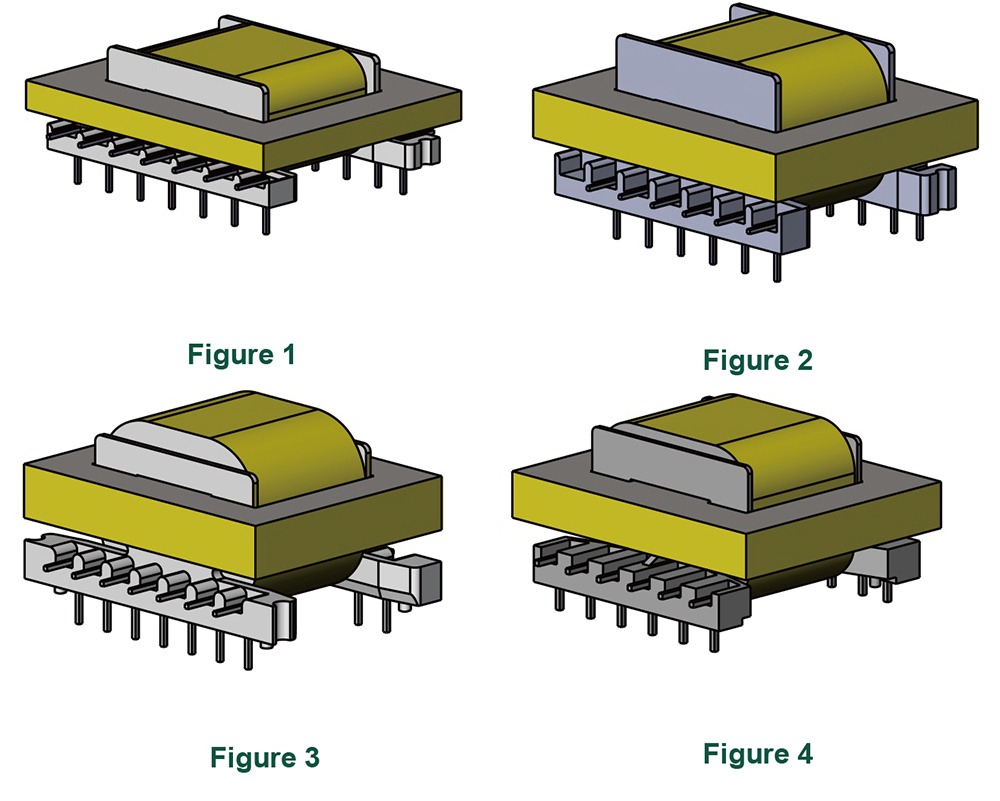

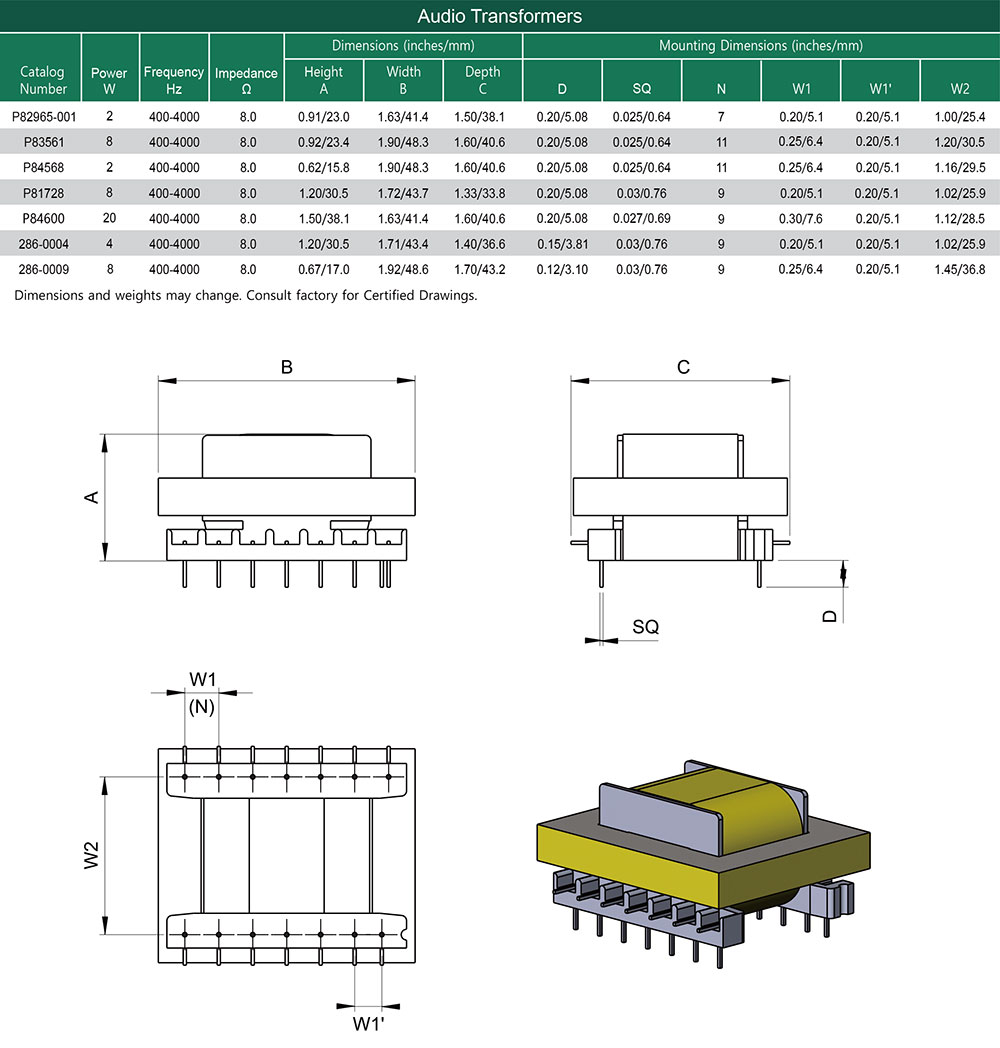

• Construction:

Bobbin has plug-in terminals which are spaced to provide fixed mounting centers.
